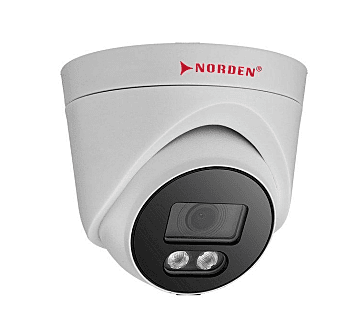

CCTV-DOME CAMERA
SGD43.00 - SGD54.00
Advanced H.265 video compression for efficient storage and bandwidth
2.8mm fixed lens (Optional 4mm for 4MP model)
PoE support for easy installation
Built-in microphone for audio recording
Up to 30m IR night vision for low-light surveillance
Suitable for indoor and outdoor security applications
Out of stock items will take around 4–6 weeks
Product Details
Model: SNS-ENV-HCD5F-30R-55 (2MP)
| Category | Specification |
|---|---|
| MODEL | 2MP Fixed Compact Dome Camera |
| CAMERA | |
| Image Sensor | 1/2.8" CMOS Progressive 2.0MP |
| Day / Night | IR Cut Filter with Auto Switch |
| Lens | 2.8 mm (Optional 4 mm), Fixed, M12 |
| Angle of View (H/V/D) | 101.2° / 54.5° / 114.9° (Optional 66.7° / 39.2° / 77.3°) |
| Aperture Range | F2.0 (Optional F1.6) |
| Electronic Shutter | 1/5 ~ 1/20,000s |
| Min. Illumination | Color: 0.1 lux / B&W: 0 lux with IR |
| DNR | 2D/3D DNR |
| WDR | Digital WDR |
| Smart IR | Up to 30m (850nm) |
| VIDEO | |
| Max Resolution | 1920 × 1080 |
| Compression | H.265+, H.265, H.264, MJPEG |
| Frame Rate | Main: 1080P/720P @25fps | Sub: Various @25fps |
| Bit Rate | 128 kbps ~ 4 Mbps (CBR/VBR) |
| Image Settings | Brightness, Contrast, Saturation, Sharpness, Rotation, Gain |
| AUDIO | |
| Compression | G.711A, G.711U, PCM |
| Built-in Mic | Supported |
| INTERFACE | |
| Network | 1 × RJ45 10/100M Ethernet |
| Protocols | TCP/IP, HTTP, HTTPS, RTSP, ONVIF (S, T) etc. |
| GENERAL | |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Operating Temp | -25°C ~ 65°C |
| Protection | IP66 |
| Dimensions / Weight | Φ110 × 97 mm / 0.45 kg |
Model: SNS-ENV-HCD7F-30R-55 (4MP)
| Category | Specification |
|---|---|
| MODEL | 4MP Fixed Compact Dome Camera |
| CAMERA | |
| Image Sensor | 1/3" CMOS Progressive 4.0MP |
| Day / Night | IR Cut Filter with Auto Switch |
| Lens | 2.8 mm (Optional 4 mm), Fixed, M12 |
| Angle of View (H/V/D) | 92.9° / 50.4° / 105.6° (Optional 61.9° / 34.9° / 71.0°) |
| Aperture Range | F2.0 (Optional F1.6) |
| Electronic Shutter | 1/5 ~ 1/20,000s |
| Min. Illumination | Color: 0.1 lux / B&W: 0 lux with IR |
| DNR | 2D/3D DNR |
| WDR | Digital WDR |
| Smart IR | Up to 30m (850nm) |
| VIDEO | |
| Max Resolution | 2560 × 1440 |
| Compression | H.265+, H.265, H.264, MJPEG |
| Frame Rate | Main: 1440P/1296P/1080P/720P @25fps | Sub: Various @25fps |
| Bit Rate | 128 kbps ~ 6 Mbps (CBR/VBR) |
| Image Settings | Brightness, Contrast, Saturation, Sharpness, Rotation, Gain |
| Intrusion & Crossline | Supported |
| AUDIO | |
| Compression | G.711A, G.711U, PCM |
| Built-in Mic | Supported |
| SMART | |
| Behaviour Detection | Intrusion (Perimeter), Crossline (Tripwire) |
| Alarm Notification | E-mail (Notification), Snapshot & Recording |
| INTERFACE | |
| Network | 1 × RJ45 10/100M Ethernet |
| Protocols | TCP/IP, HTTP, HTTPS, RTSP, ONVIF (S, T) etc. |
| GENERAL | |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Operating Temp | -25°C ~ 65°C |
| Protection | IP66 |
| Dimensions / Weight | Φ110 × 97 mm / 0.45 kg |
